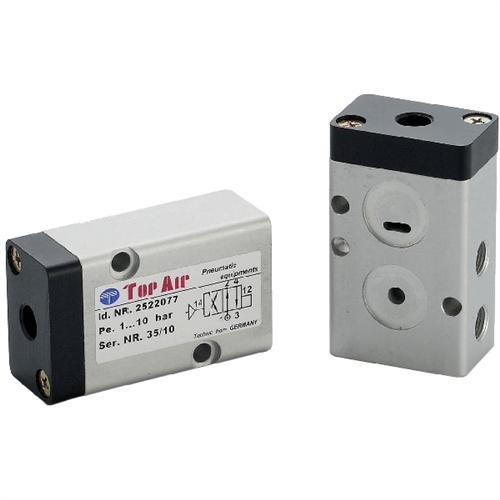

2522077 (4/2way Air pilot valve)

Print (Open new window) Print Download - 2522077 Download 2D Download - DWG 2D Download 3D Download - 3D 3D Download
Features

˙ Staight manual override with and without detent
˙Mounting position optional
˙Small size, high flow rate, easy installation
˙Exhaust air attenuated
˙Common exhaust
˙Connector interface to DIN 43650, from B and industrial form
˙Low power consumption

Parameters

NAMUR series
Norminal Size 4
Solenoid pilot actuated
Spool with pressure energized soft seals
Port size G1/8, manifoid system G1/4
Operating pressure:1 to 10 bar

* Oil recommendation : Shell Hydrol DO 32, Shell Febis K32 (as of July 1992)
   or compatable oils with DVI values < 8 (DIN53521) and ISO viscosity class 32-46 (DIN51519)
* at 6 bar to VDI3290with DC solenoid

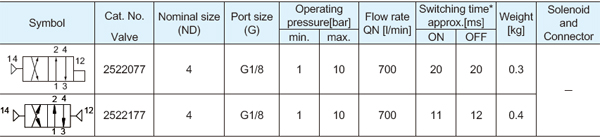

  Description (Standard type)

  How to Order

  Dimensional drawing

˙Solenoid valve for filtered, lubricator* or non-lubricated air
˙Flow direction:Fixed
˙Temperature range:-10 ℃ ~ +60 ℃
˙Material - Body:Aluminum
˙Material - Seat Seal:NBR
