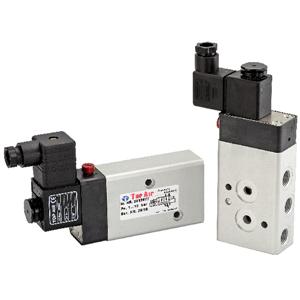

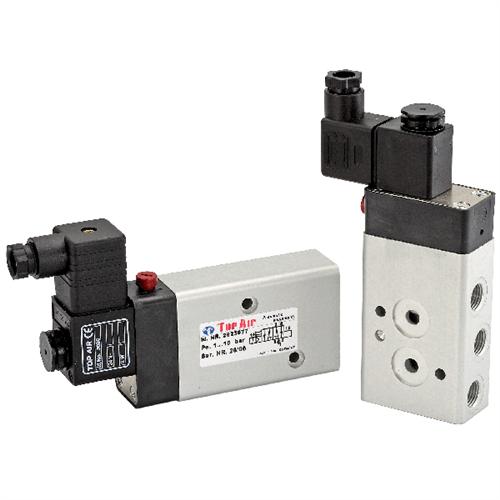

2623077 (5/2way Solenoid valve)

Print (Open new window) Print │ Download - 2623077 Download 2D Download - DWG 2D Download 3D Download - 3D 3D Download
Features

˙ Integrated sund absorption eliminating
˙Straight thru flow paths assuring high
˙Simple, compact yet most efficient
˙Maintenance-free
˙Easy to service
˙Uncomplicated and fast replacement of solenoids
˙Compact design
˙Standard manual override
Parameters

NAMUR series
Norminal Size 7
Solenoid pilot operated
Spool with pressure energized soft seals
Port size G1/4
Operating pressure：10 bar max.

* Oil recommendation : Shell Hydrol DO 32, Shell Febis K32 (as of July 1992) or compatable oils
   with DVI values < 8 (DIN53521) and ISO viscosity class 32-46 (DIN51519)
  ‧Option：Flat Manual override

  Description (Standard type)

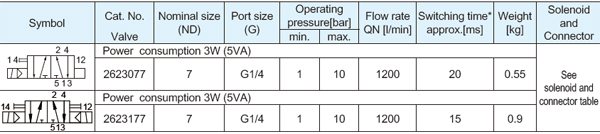

  How to order

  Dimensional drawing

˙Solenoid valve for filtered, lubricator* or non-lubricated air
˙Flow direction：Fixed
˙Temperature range：-10 ℃ ～ +60 ℃
˙Material - Body：Aluminum
˙Material - Seat Seal：NBR
