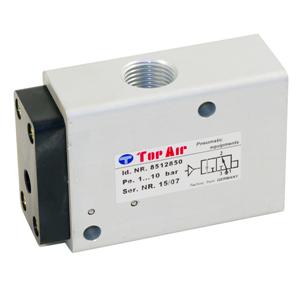

8012850 (3/2way Solenoid valve)

Print (Open new window) Print Download - 8012850 Download 2D Download - DWG 2D Download
Features
˙Straight thru flow paths assuring high flow rates and fast response time
˙Simple, compact, easy to servie design
˙Interchangeable solenoid system
˙Delrin spool equipped with Polyurethane
˙T-ring giving rugged resistance to wear along with low friction, thus resulting in savings on maintenance
˙Pressure molded expoxy encapsulated coil, easily interchangeable
˙Sinterd bronze muffler on pilot exhaust protects against aerosol and eliminates objectionable air noise
˙Manual override
Parameters

Norminal Size 5, 7, 12
Solenoid pilot actuated
Spool with pressure energized soft seals
Port size G1/8, G1/4, G1/2
Operating pressure:10 bar Max.

 * The valves are suitable for dry runing. Shell Hydrol DO32,
   Shell Voltol 64 Esso Febis K32 or oil of equal quality are
   recommended for the system lubrication
‧Option:Flat Manual override


  Description (Standard type)

  How to order

  Dimensional drawing

˙Solenoid valve for filtered, lubricator or non-lubricated air
˙Flow direction:Fixed
˙Temperature range:-10 ℃ ~ +60 ℃
˙Material - Body:Aluminum
˙Material - Seat Seal:NBR
