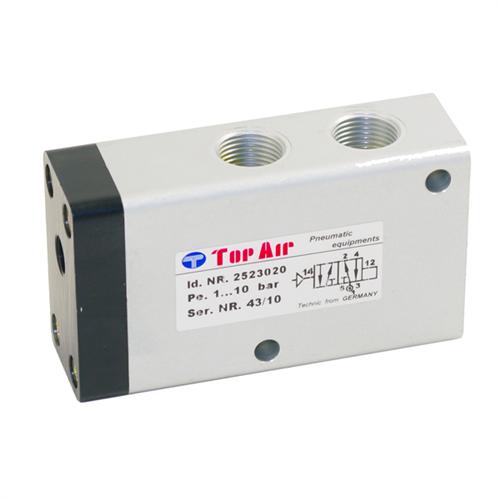

2523020 (5/2way Air pilot valve)

Print (Open new window) Print Download - 2523020 Download 2D Download - DWG 2D Download 3D Download - 3D 3D Download
Features
˙ Integrated sund absorption eliminating
˙Objectionable air noise
˙Straight thru flow paths assuring high
˙Flow rates and fast response time
˙Simple, compact yet most efficient
˙Design thanks to T-ring system
˙Maintenance-free
˙Easy to service
˙Uncomplicated and fast replacement of solenoids
˙Compact design
˙

Standard manual override

Parameters

Norminal Size 7 and 12
Solenoid pilot actuated
Spool with pressure energized soft seals
Port size G1/4, up G1/2
Operating pressure:10 bar max.

* Oil recommendation : Shell Hydrol DO 32, Shell Febis K32 (as of July 1992)
  or compatable oils with DVI values < 8 (DIN53521) and ISO viscosity class 32-46 (DIN51519)


  Description (Standard type)

  How to Order

˙Solenoid valve for filtered, lubricator* or non-lubricated air
˙Flow direction:Fixed
˙Temperature range:-10 ℃ ~ +60 ℃
˙Material - Body:Aluminum
˙Material - Seat Seal:NBR
