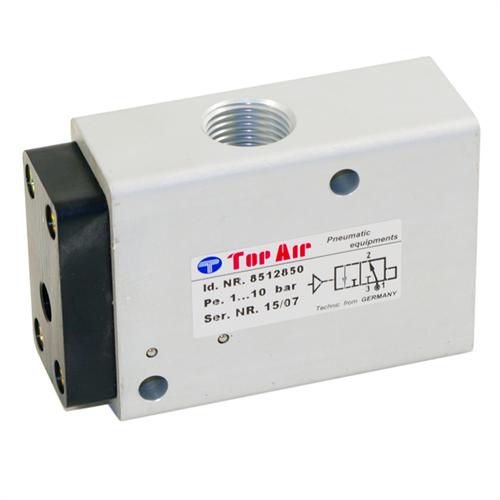

8512850 (3/2way Air pilot valve)

Print (Open new window) Print Download - 8512850 Download 2D Download - DWG 2D Download
Features

˙ Straight thru flow paths assuring high flow rates and fast response time
˙Simple, compact, easy to servie design
˙Interchangeable solenoid system
˙Delrin spool equipped with Polyurethane
˙T-ring giving rugged resistance to wear along with low friction, thus resulting in savings on maintenance
˙Pressure molded expoxy encapsulated coil, easily interchangeable
˙Sinterd bronze muffler on pilot exhaust protects against aerosol and eliminates objectionable air noise
˙Manual override

Parameters

Norminal Size 5, 7, 12
Solenoid pilot actuated
Spool with pressure energized soft seals
Port size G1/8, G1/4, G1/2
Operating pressure:10 bar Max.

* The valves are suitable for dry runing. Shell Hydrol DO32, Shell Voltol 64 Esso Febis K32
   or oil of equal quality are recommended for the system lubrication.


  Description (Standard type)

  How to Order

  Dimensional drawing

˙Solenoid valve for filtered, lubricator* or non-lubricated air
˙Flow direction:Fixed
˙Temperature range:-10 ℃ ~ +60 ℃
˙Material - Body:Aluminum
˙Material - Seat Seal:NBR
