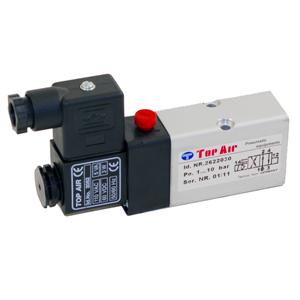

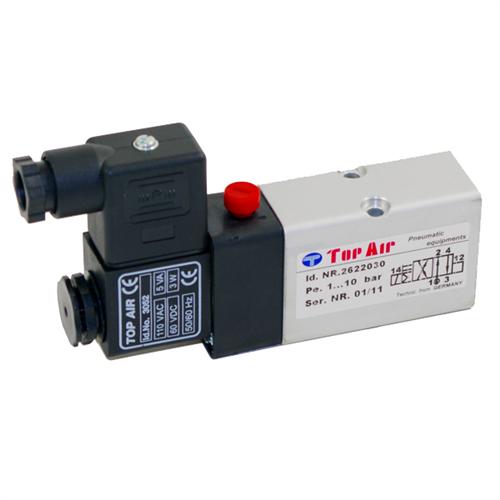

2622030 (4/2way Solenoid valve)

Print (Open new window) Print Download - 2622030 Download 2D Download - DWG 2D Download 3D Download - 3D 3D Download
Features
˙ Staight manual override with and without detent
˙Mounting position optional
˙Small size, high flow rate, easy installation
˙Exhaust air attenuated
˙Common exhaust
˙Connector interface to DIN 43650, from B and industrial form
˙Low power consumption



Parameters

RM series
Norminal Size 4
Solenoid pilot actuated
Spool with pressure energized soft seals
Port size G1/4, manifoid system G3/8
Operating pressure:1.5 to 10 bar

 * Oil recommendation : Shell Hydrol DO 32, Shell Febis K32 (as of July 1992) or
   compatable oils with DVI values < 8 (DIN53521) and ISO viscosity class 32-46 (DIN51519)
 * at 6 bar to VDI3290 with DC solenoid
   ‧Option:Flat Manual override


  Description (Standard type)

  How to order

  Dimensional drawing

˙Solenoid valve for filtered, lubricator* or non-lubricated air
˙Flow direction:Fixed
˙Temperature range:-10 ℃ ~ +60 ℃
˙Material - Body:Aluminum
˙Material - Seat Seal:NBR
