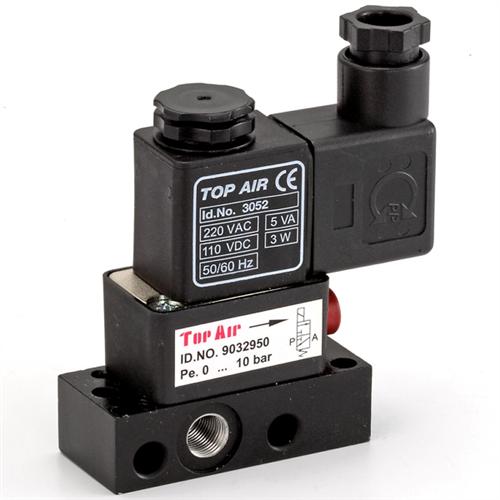

9032950 (3/2way Solenoid valve)

Print (Open new window) Print Download - 9032950 Download 2D Download - DWG 2D Download 3D Download - 3D 3D Download
Features
˙Compact design
˙Interchangeable solenoid system
˙Also suited for coarse vacuum
˙Exhaust port provided with silencer
˙With manual override
˙Mounting position optional

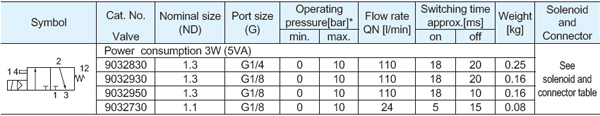

Parameters

Norminal Size 1.3 and 1.1
Directly solenoid actuated
Poppet valves, normally closed
Internal thread, battery type design
Port size G1/4, G1/8
Operating pressure:10 bar Max.

* At pressure of 6 bar to VDI 3290, with DC type solenoid
  ‧Option:Flat Manual override
  ‧Tight solenoid core tube with at least 0.2 to max. 0.5 Nm
